Brother-PT-E560BTVP Label Printer

• 6x one-touch industry application keys for general, faceplate, cable flag/wrap, punch down block and patch panel identification

• Specialist tapes available including strong adhesive, flexible ID, heat shrink tubing and self-laminating

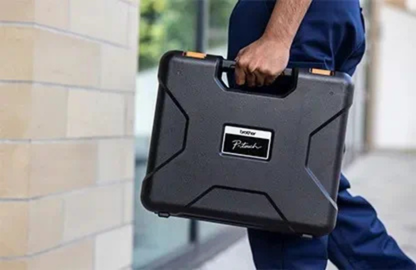

• Comes with Rechargeable Li-Ion Battery, USB Type-C cable, 1x 24mm TZe flexible ID tape, and hard carrying case

• Fast print speeds of up to 30mm/sec and automatic (full & half) cutter with easy peel function to print multiple labels in one continuous strip

• USB connectable for PC printing, Bluetooth connectivity for mobile devices

• Prints durable labels up to 24mm wide

Basic Specs

Keyboard: QWERTY

Display Type: 18 characters x 3 lines

Media Type: TZe, HGe, HSe (Heat-shrink Tube)

Available Tape Widths:

TZe: 3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm
HGe: 6mm, 9mm, 12mm, 18mm, 24mm
HSe (Shrink ratio: 3:1): 5.2mm, 9.0mm, 11.2mm, 21.0mm

Product Dimensions (Width X Depth X Height): 132 mm × 244 mm × 80 mm

Weight: 1.05 kg

Print Speed: Using AC Adapter: Up to 30 mm/sec, Using Battery: Up to 20 mm/sec

Print

Resolution: 180 dpi

No. Of Printable Lines:

24 mm tape: 1 – 7 lines
18 mm tape: 1 – 5 lines
12 mm tape: 1 – 3 lines
9 mm tape: 1 – 2 lines
6 mm tape: 1 – 2 lines
3.5 mm tape: 1 line

Number of Characters: 684

Number of Symbols: 476

Barcode:

1. CODE39
2. ITF 2/5
3. EAN13
4. EAN8
5. UPC-A
6. UPC-E
7. CODABAR
8. GS1-128 (UCC/EAN128)
9. CODE128
10. QR Code (model 1, model 2, micro QR, GS1)
11. Data Matrix
※GS1 QR codes will be transferred as micro QR codes.

1D barcodes only for transferred templates:
1. ISBN-2
2. ISBN-2
3. POSTNET
4. Laser Bar Code
5. GS1 DataBar (RSS)
6. Intelligent Mail Barcode

2D barcodes only for transferred templates:
1. PDF417
2. MaxiCode
3. Aztec Code
4. GS-1 Composite

Numbering: Yes (1 – 99)

Connectivity

USB version 2.0 (Full Speed), Bluetooth 5.0 (SPP/iAP)

Media

Maximum Tape Width: Up to 24 mm

Printing Width: Up to 18.0 mm

Functions

Cutter: Auto (half and full)

Multi Block Printing: Yes

Copy Printing: Yes

Mirror Printing: Yes

Preview: Yes

Memory

File Storage: Up to 99 files

Memory Buffer Size: Up to 1800 characters

Power

Power Source: Rechargeable Li-ion Battery (BA-E001)

Optional: AC Adapter for USB Type-C (PA-AD-004)

Auto Power-Off

Li-ion Battery (BA-E001): 20 minutes

AC Adapter for USB Type-C (PA-AD-004): 20 minutes

Supported Operating Systems

Windows 10, 11
