Access FIT V Electric Projection Screen

Product Specs

•  Case dimensions are 5-11/16” high x 6-7/16” deep (14 cm x 16 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.

•  Access Fit is recommended when space is at a premium. The standard Access is a good alternative whenever the above-ceiling space permits.

•  Maximum image width up to 104″ (264 cm) wide, depending on surface selection.

•  Image area fully framed with black. Standard 12″ (30 cm) black drop at top of viewing area.

•  Adjustable or removable hoisting brackets included for easy lifting during installation.

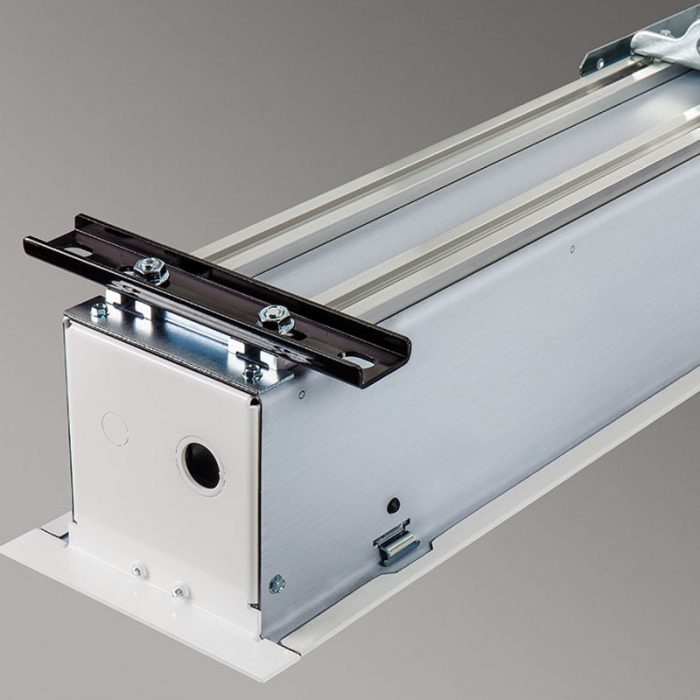

•  Sliding brackets on top of the case allow for adjustments for mounting.

•  Sliding brackets inside case accommodate different size screens.

•  Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

•  Quick-connect wiring allows for early installation of the case with the addition of the screen later.

•  Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.

•  Low voltage, video interface or other controls can be built into housing for below ceiling access.

•  White case standard, black available upon request.

•  Custom sizes available.
